Two Way Pillar Bib Tap With Fixed Nozzle - 900124

This is a stock item. Order by 5pm Monday to Thursday and 4.30pm Friday for same day despatch.

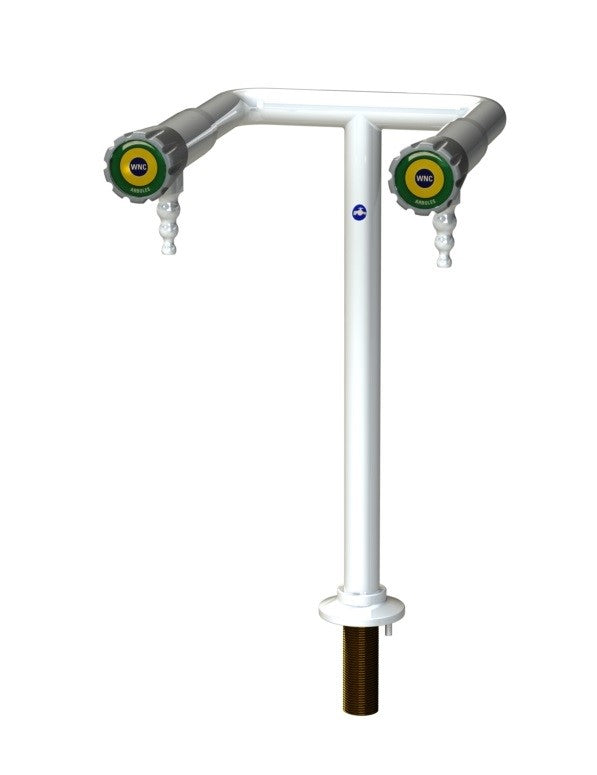

Two Way Pillar Bib Tap With Fixed Nozzle

The 900124 is a 2 way pillar bib tap that has fixed nozzles, strengthened shanks and the anti rotation pin (drilling template supplied) which prevents the tap being twisted from the desk – no extra devices or assembly needed.

The solid brass construct makes it incredibly hard wearing and durable. The tap is Rilsan powder coated which gives it strong chemical resistance properties as you would expect along with strong anti scuff properties making it ideal for the school and education environment.

The inlet is 1/2″ BSP and secured with a back nut.

The removable nozzle option is product 900125 (please contact us for price/availability).

This tap is WRAS approved and comes with an extensive 5-year warranty.

For any of your bib tap enquiries please contact us on +44 (0)1482 601030 or email sales@nabicvalvesonline.co.uk

Part No: 900124CW-WA Cold water
Description: Single Pillar tap with Twin outlets fixed serrated nozzles.
Applications: Standard laboratory water tap for all applications where header tank supply is present (Full WRAS approval).
Options: Removable or full-bore nozzles are available on request.
Construction: All brass body, Rilsan plastic coated, white (RAL9016). Chemical resistant plastic ABS handwheel, Identification coding to DIN13792.

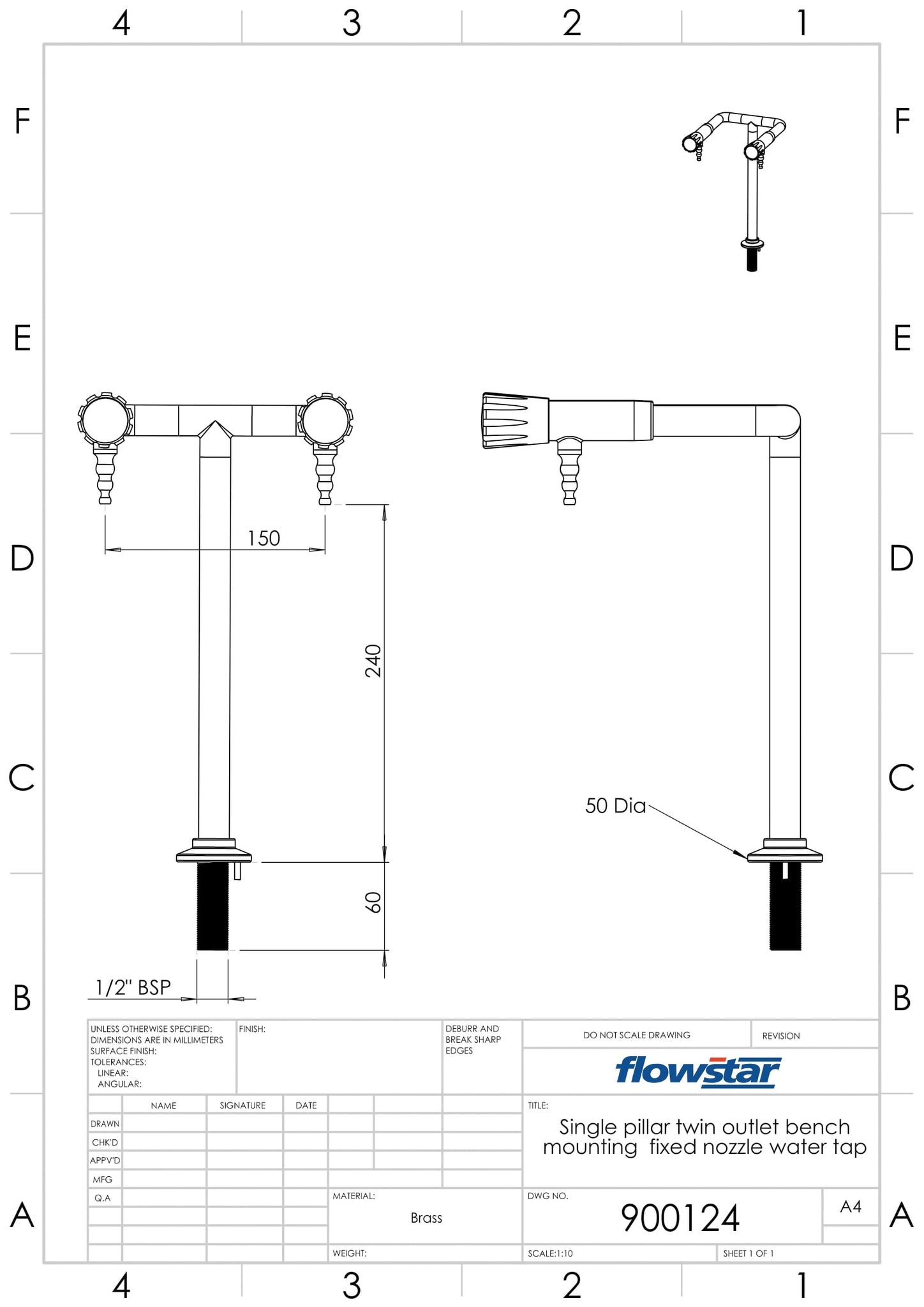

Connection and mounting: ½” BSP male flat ended shank x 60mm long with back nut. Standard anti-rotation base with location pin. Two mounting holes 22mm and 5mm diameter required template enclosed.
Pressure and Flow: Maximum pressure 100PSI (Recommended 20PSI). Flow Rate @ 20 psi = 12 Litre/min.
Spares: Handwheel Assembly - Pt No 960180, Valve head work - Pt No 950148.
WRAS: Approved.

Two Way Pillar Bib Tap With Fixed Nozzle - 900124 Datasheet
